Glass Edging/Seaming Machine

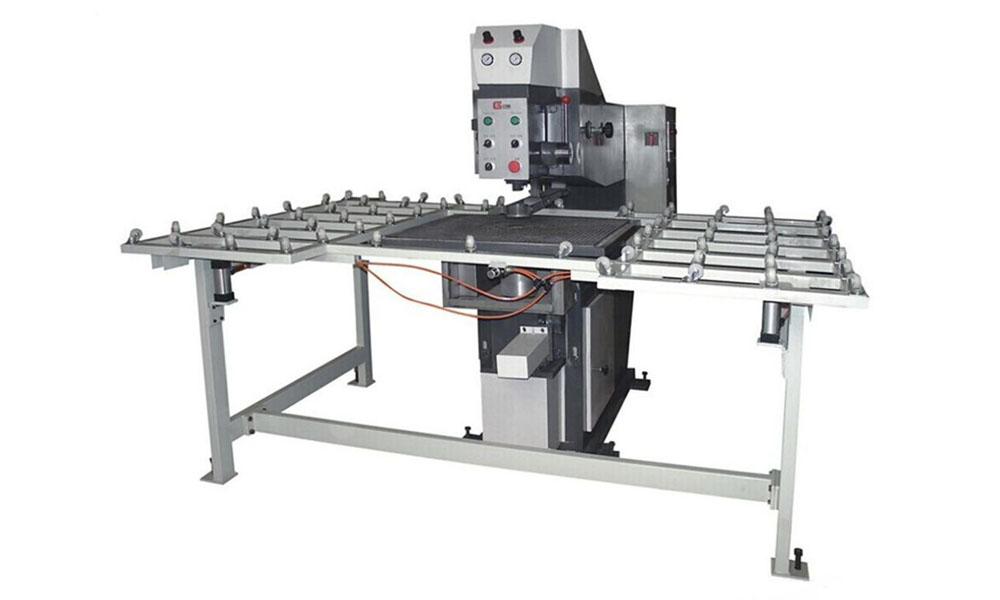

Glass Drilling Machine

EGZ-0222

Product Detail

The machine fixes the glass pneumatically and drill with the upper and lower, double drill bits. The pneumatic working table for supporting large size glass is equipped with high efficiency and easy operation. It is one of the indispensable machines in modern glass industry.

Technical Parameter:
Max. glass size: 2600X2400mm;
Power: 10Kw;
Processing speed: 1.5~6m/min;
Outer Dimension: 2600X2000X1800mm;
Glass thickness: 3~25mm;
Drilling diameter: Φ4-Φ220mm 1000kg;
